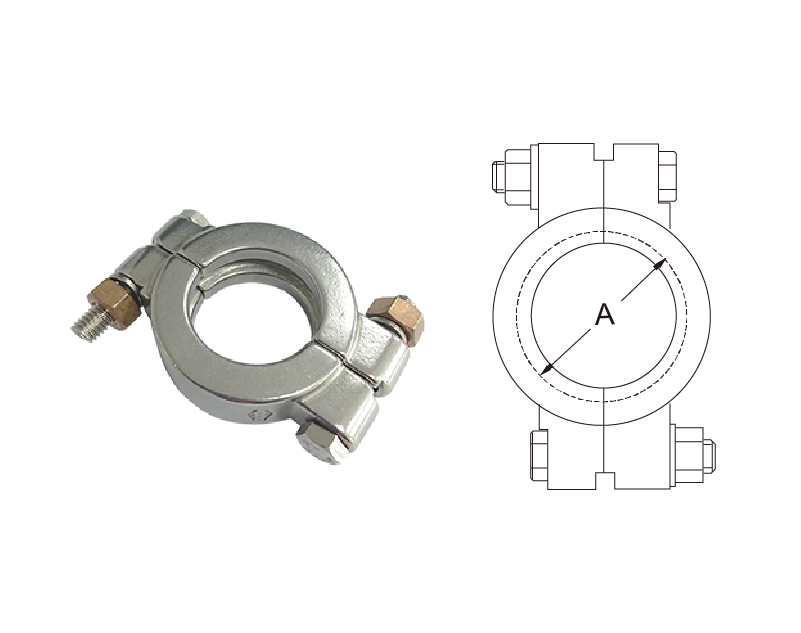

DSC4010-13MHP
End solutions made by stainless.
Part No. 13.4010.X.X
INDOOR 304
| PART NO. | Ø | A | |
|---|---|---|---|
| 13.4010.005.021 | 13MHHM75 | ½"-¾" | 1.062 |
| 13.4010.010.021 | 13MHHM100-150 | 1"-1½" | 2.122 |
| 13.4010.020.021 | 13MHHM200 | 2" | 2.654 |
| 13.4010.025.021 | 13MHHM250 | 2½" | 3.185 |
| 13.4010.030.021 | 13MHHM300 | 3" | 3.717 |
| 13.4010.040.021 | 13MHHM400 | 4" | 4.820 |
| 13.4010.050.021 | 13MHHM500 | 5" | 5.820 |
| 13.4010.060.021 | 13MHHM600 | 6" | 6.695 |
| 13.4010.080.021 | 13MHHM800 | 8" | 8.638 |
| 13.4010.100.021 | 13MHHM1000 | 10" | 10.740 |
| 13.4010.120.021 | 13MHHM1200 | 12" | 12.740 |
OUTDOOR 316
| PART NO. | Ø | A | |
|---|---|---|---|
| 13.4010.005.021 | 13MHHM75 | ½"-¾" | 1.062 |
| 13.4010.010.021 | 13MHHM100-150 | 1"-1½" | 2.122 |
| 13.4010.020.021 | 13MHHM200 | 2" | 2.654 |
| 13.4010.025.021 | 13MHHM250 | 2½" | 3.185 |
| 13.4010.030.021 | 13MHHM300 | 3" | 3.717 |
| 13.4010.040.021 | 13MHHM400 | 4" | 4.820 |
| 13.4010.050.021 | 13MHHM500 | 5" | 5.820 |
| 13.4010.060.021 | 13MHHM600 | 6" | 6.695 |
| 13.4010.080.021 | 13MHHM800 | 8" | 8.638 |
| 13.4010.100.021 | 13MHHM1000 | 10" | 10.740 |
| 13.4010.120.021 | 13MHHM1200 | 12" | 12.740 |
